Hardwoord Insulation Blocks
Type Z1037
For electrical traced pipes

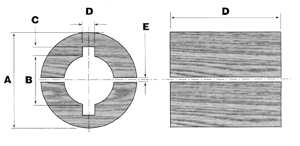

Hardwoord Insulation Blocks<br>Type Z1037
Nom size Block
ID
Block
OD
Block Length
NPS DN Hanger Bolt-on
Skid
½ 15 23 87 145 * See
note
below
¾ 20 29
1 25 36 116
40 50
2 50 62 142
3 80 91 169
4 100 116 221 165
6 150 171 276
8 200 223 328
10 250 276 360
12 300 328 410 190
14 350 360 460
16 400 411 514
18 450 461 564 210
20 500 512 614

All dimensions in millimetres unless otherwise stated
* Length to be specified by designer
= Skid length (M1) + 100 or Clip Width + 100
