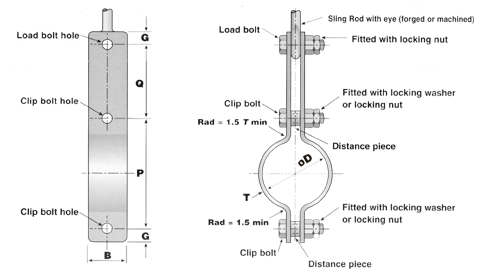

Pipe Clip For Steel Pipe
Temp Range A: -20oC to 100oC Material BS 4360 Gr 43a or equivalent.
Temp Range B: 100oC to 400oC Material BS 1501 - 151 Gr 23b or equivalent.
Pipe Clip For Steel Pipe
Pipe Size Light Series
Nom.
size		 Outside
dia.		 Sling
rod
dia.		 D dia. Clip
dimen.
B x T		 P Q Clip & Load Bolts G
Min.		 Safe
working
load
kgf
Bolt Hole
dia.
65 76.1 12 80 35 x 5 125 105 M12 15 18 165
80 88.9 12 92 35 x 5 135 105 M12 15 18 165
100 114.3 12 118 35 x 5 170 105 M12 15 18 165
125 139.7 16 144 35 x 8 215 95 M16 19 24 280
150 168.3 16 172 35 x 8 245 95 M16 19 24 280
175 193.7 16 198 35 x 8 270 95 M16 19 24 280
200 219.1 16 224 35 x 8 295 100 M16 19 24 280
225 244.5 16 248 45 x 10 330 95 M16 19 24 450
250 273.0 16 278 45 x 10 360 105 M16 19 24 450
300 323.9 20 330 60 x 15 445 115 M20 24 30 900
350 355.6 26 362 60 x 15 485 115 M24 28 36 900
400 406.4 24 412 65 x 20 560 115 M24 28 36 1350
450 457.0 30 464 65 x 20 625 115 M30 35 45 1800
500 508.0 30 516 90 x 25 700 115 M30 35 45 2700
550 559.0 30 566 90 x 25 750 115 M30 35 45 2700
600 610.0 30 618 90 x 25 805 115 M30 35 45 2700

Pipe Size Heavy Series
Nom.
size		 Outside
dia.		 Sling
rod
dia.		 D dia. Clip
dimen.
B x T		 P Q Clip & Load Bolts G
Min.		 Safe
working
load
kgf
Bolt Hole
dia.
15 21.3 10 23 35 x 5 65 70 M10 12 15 280
20 26.9 10 28 35 x 5 70 70 M10 12 15 280
25 33.7 10 36 35 x 5 75 70 M10 12 15 280
32 42.4 12 44 35 x 5 90 70 M12 15 18 280
40 48.3 12 50 35 x 5 95 85 M12 15 18 280
50 60.3 12 62 35 x 5 105 80 M12 15 18 280
65 76.1 16 80 35 x 8 155 90 M16 19 24 450
80 88.9 16 92 35 x 8 165 95 M16 19 24 450
100 114.3 16 118 35 x 8 190 95 M16 19 24 450
125 139.7 16 144 35 x 8 215 95 M16 19 24 450
150 168.3 16 172 35 x 8 245 95 M16 19 24 450
175 193.7 20 198 45 x 10 288 85 M20 24 30 900
200 219.1 20 224 45 x 10 315 95 M20 24 30 900
225 244.5 20 248 60 x 15 365 85 M20 24 30 1350
250 273.0 20 278 60 x 15 390 90 M20 24 30 1350
300 323.9 24 330 65 x 20 475 115 M24 28 36 1800
350 355.6 30 362 65 x 20 525 115 M30 35 45 2250
400 406.4 30 412 90 x 25 600 115 M30 35 45 2700
450 457.0 36 464 90 x 25 660 115 M36 42 54 3600
500 508.0 36 516 100 x 30 740 115 M36 42 54 4500
550 559.0 36 566 100 x 30 790 115 M36 42 54 4500
600 610.0 42 618 100 x 35 880 115 M42 48 63 5900

All Dimensions in millimetres
