Pipe Clamp
Material: BS 4360 Gr 43a 20oC/100oC or equivalent carbon steel

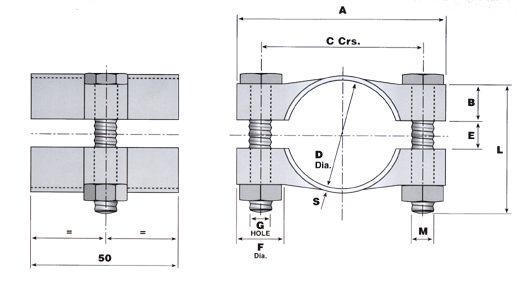

Pipe Clamp
Nominal
bore
size		 Pipe O/D A B C D E F G S Bolt Dims
M x L
½" 15 21.3 62 13 46 26 3 16 9 2 M8 x 45
¾" 20 26.9 69 13 53 31 5 16 9 3 M8 x 45
1" 25 33.7 77 13 61 37 5 16 9 3 M8 x 45
1¼" 32 42.4 85 13 69 46 5 16 9 3 M8 x 45
1½" 40 48.3 91 13 75 52 5 16 9 3 M8 x 45
2" 50 60.3 104 13 88 65 5 16 9 3 M8 x 45
2½" 65 76.1 135 19 113 80 5 22 11 5 M10 x 55
3" 80 88.9 148 19 126 93 5 22 11 5 M10 x 55

All dimensions in millimetres
