Precision Pipe Supports - Suppliers of Quality Pipe Supports
Sling Rod With Screwed Machine Eye
BS 3974 : Pt 1 : 1974
Material: BS 4360 Gr 43a or equivalent

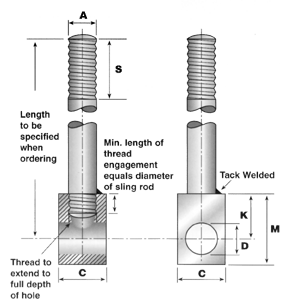

Sling Rod With Screwed Machine Eye
Sling Rod
dia. A
C K M D
dia.
S Safe
Working
Load
kgf
8 22 16 25 10 60 230
10 22 19 30 12 60 360
12 22 22 35 14 60 530
16 28 28 45 18 60 1010
20 32 35 55 22 75 1580
24 38 40 65 26 90 2280
30 50 52 85 33 120 3650
36 55 60 95 39 150 5340
42 70 70 110 45 180 7400

All dimensions in millimetres
