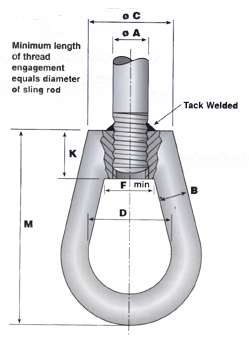

Bow Nut (Weldless Eye Nut)
BS 3974 : Pt 1 : 1974
Material: BS 4360 Gr 43a or equivalent
Bow Nut (Weldless Eye Nut)
Sling
Rod
Dia. A
D B C
dia.
F
min.
K M Safe
Working
Load
kgf
8 25 6 32 12 16 64 230
10 25 7 32 14 16 64 360
12 30 9 38 16 18 73 530
16 30 12 38 20 18 73 1010
20 40 14 45 24 25 102 1580
24 50 17 50 28 28 124 2280
30 75 21 70 34 38 146 3650
36 75 26 70 40 38 146 5340
42 100 30 80 46 45 180 7400

All dimensions in millimetres
