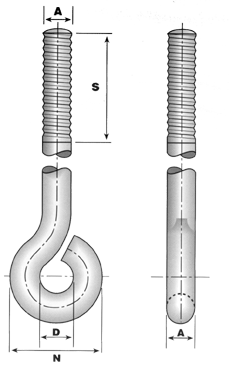

Sling Rod
Dia. A |
N |
D |
S |
Safe Working
Load
kgf |
8 |
26 |
10 |
60 |
70 |
10 |
32 |
12 |
60 |
105 |
12 |
39 |
15 |
60 |
150 |
16 |
51 |
19 |
60 |
285 |
20 |
64 |
24 |
75 |
430 |
24 |
76 |
28 |
90 |
660 |
NOTE: The safe working loads given are those applicable to an open eye.
The use of welding to close the eye is not acceptable.
